Features

  • High-performance, rationalized machine to various needs.
  • The precision longitudinal rail extendable in 3 m increments.
  • From 1.6 to 7.6m effective cutting widths. Large width on request.
  • Optional twin torch attachment and bevel cutting attachment.
  • Triple machine rail and rail adjuster for maximum stability & best accuracy.

Description

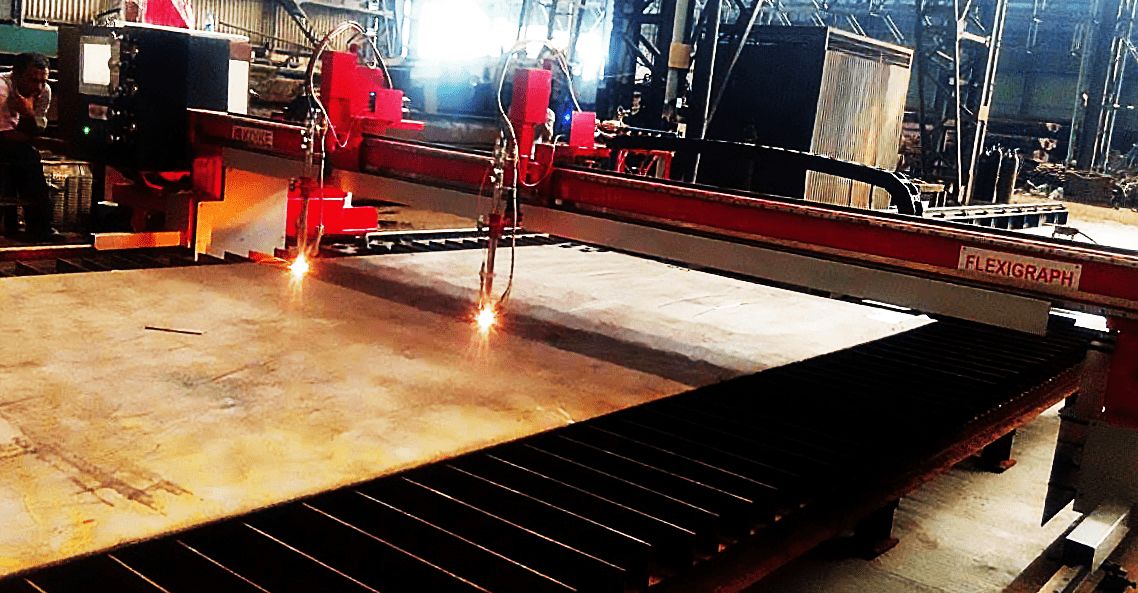

The FLEXIGRAPH is a whole new innovative cutting solution developed with KOIKE's highest standard. It is a perfect machine to enter the world of CNC cutting. Based on the demands from the market for a simple, affordable, and versatile CNC cutting machine, KOIKE designed a machine that is portable, operated by CNC, and Plasma Cutting "I" cut with Powder Marking. It also has some of the optional features unlike others such as Multiple torch Option, Gas Bevel head for I,V,Y,X,K bevel, Automatic Torch Rotation Optional etc. It also has World's Fastest/Accurate infinite rotation Al cast.



Techanical Specification


Gantry Type Dual Side Drive
Model Name FLEXIGRAPH-DD
Process Gas Cutting and/or Plasma Cutting
Effective Cutting Width Max.5,500mm
Effective Cutting Length Total Longitudinal Rail Length-2150
Longitudinal Drive Method Rack and Pinion with Machine Rail
Transverse Drive Method Rack and Pinion with Linear Guide Way
Cutting Speed Up to 6m/min
Max.Travel Speed 12m/min
CNC System KOIKE D470 or D570
Gas Cutting Capacity Max.150mm thick plate
Plasma Cutting Capacity Depends on Plasma Power Source
Machine Body Color KOIKE Red

Download Brouchre

Download

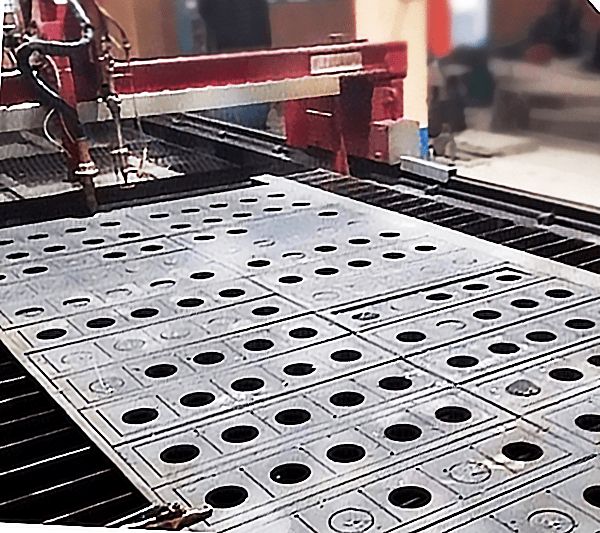

Working

Features

  • Rigid & Compact gantry machine with dual drive and precision railway.
  • AC Servo motors with state of art high response vectors control.
  • Backlash free planetary reduction gear-boxes for all axes.
  • Precision rack / Pinion drive for high accuracy.
  • Compact KOIKE CNC D430 Controller.
  • Plasma and oxy-fuel cutting (upto 2 gas torches).

Description

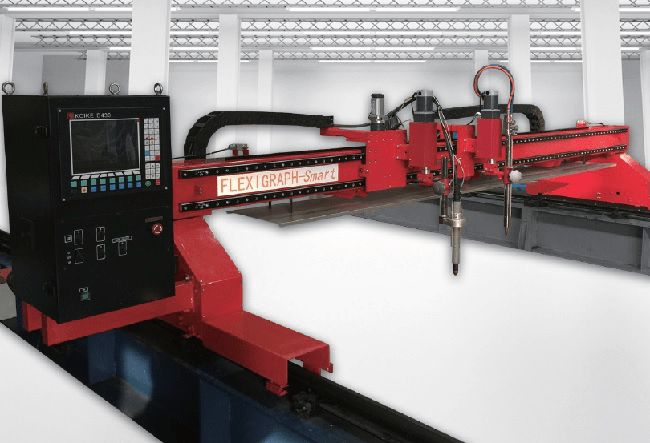

The Flexigraph-Smart is CNC oxy-fuel & plasma cutting machine.The Flexigraph-Smart would surely help you improve your productivity by automating cutting application with most simple machine components and intelligent CNC system at excellent cost-performance.



Techanical Specification


Machine type Air Plasma Ready Type
Main body Dual-side Drive
Transverse Drive Unit Main Carriage Drive (Rack and Pinion)
Effective Cutting Width 1,550mm
Effective Cutting Length 3,050mm
Drive Method Rack&pinion drive for X and Y axes
Servo Drive Panasonic AC servo drive
Cutting Speed Maximum 6M/min
Rapid Traverse Speed 12M/min
CNC System KOIKE D430
Cutting Capacity Depends on plasma cutting system
Plasma Torch Height Control AVC type, Model HP-103
Plasma Torch Holder De-coupler type with initial height sensing

Download Brouchre

Download

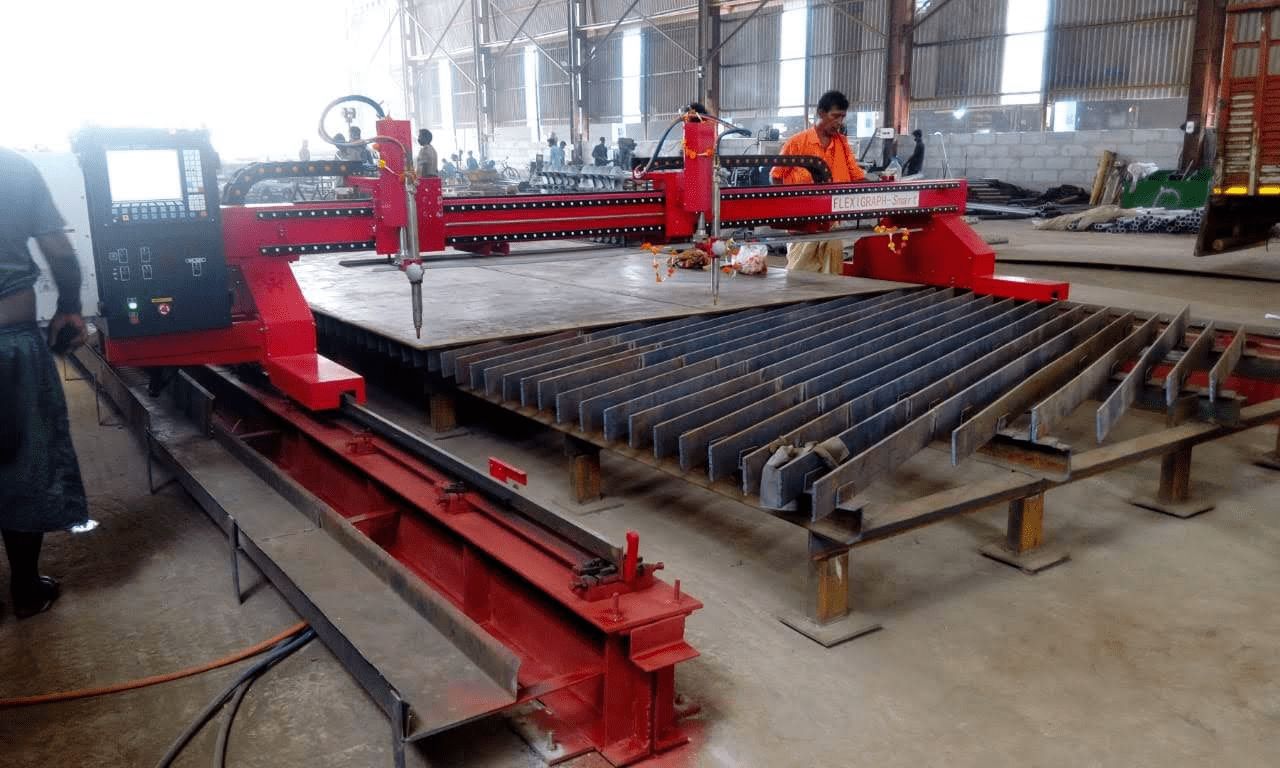

Working

Features

  • Ideal for all customers looking for a simple CNC cutting solution
  • Plug and cut - minimal installation time
  • Easy and simple CNC operation with pre-installed shape templates
  • Suitable for both oxy-fuel and plasma cutting
  • Compatible with most of air plasmas available in today's market
  • Comes standard with KOIKE CAD/CAM software, "MOST2D"

Description

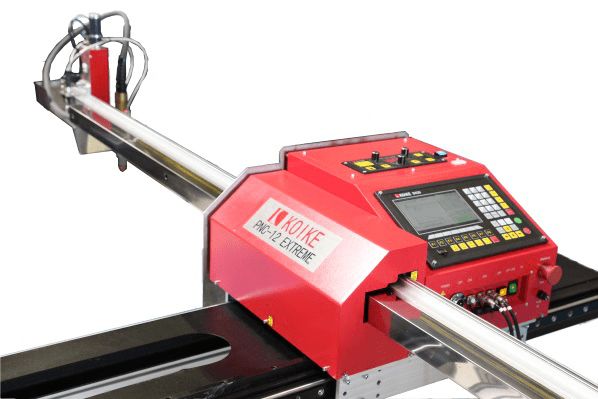

The PNC-12 EXTREME is a whole new innovative cutting solution developed with KOIKE's highest standard. It is a perfect machine to enter the world of CNC cutting. Based on the demands from the market for a simple, affordable, and versatile CNC cutting machine, KOIKE designed a machine that is portable, operated by CNC, and suitable for both oxy-fuel and plasma cutting. Due to its compact size and portability, installation of the machine is easier than ever. Assembly and setup of all components, such as machine body, rail, and cross bar do not require any special measuring tools. PNC-12 EXTREME is pre-adjusted at our factory before shipping, what customer needs to do at the installation site is to simply slide in all components together, and connect cables.


Optional

3m rail extension.



Techanical Specification


Type 1000,1250,1500
Effective Cutting Width 1000mm,1250mm,1500mm
Longitudinal Rail Length 1000mm,3000mm,3500mm Selectable
Effective Cutting Length 1500mm,2500mm,3000mm Selectable
Rapid Travel Speed 3,000 mm/min
Cutting Speed 100-2,000 mm/min
Supply Voltage 1 Phase, 110V or 220V/230V Selectable by Internal Switch
Heat Shield Plate Provided at Side of the Machine and the Torch Motor
Oxy-fuel Cutting Torch 1 Set With Motorized Torch Riser
Cutting Tips KOIKE 100 Series Tips
Cutting Thickness Max Cutting Thickness is Subject to Cutting Tip Size
Torch Holder 1 Set With Motorized Torch Riser/ Diameter 35mm
Available Plasma System Non High Frequency ARC Start Type Plasma System
Plasma Cable Hold Transverse Bar Hold Type
Torch Protection Torch Magnetic de-Coupler
Torch Height Control Initial Height Sensing / Arc Voltage Torch Heoght Control
Fume Collecting System Not included
Model of CNC Koike D420
Operating Panel 7 inch Color LCD Graphic Display and Key Pad
Language English, Japenese, Chinese
Program Input Manual MDI or by USB Stick (up to 16GB)
Control Axis X/Y 2 Axes Control
Shape Library 49 Patterns
Operation Function Dry Run, Reverse, Plate Alignment, Mirror, etc
Model PNC-CAM2A[KAP Portable CNC editions]

Download Brouchre

Download

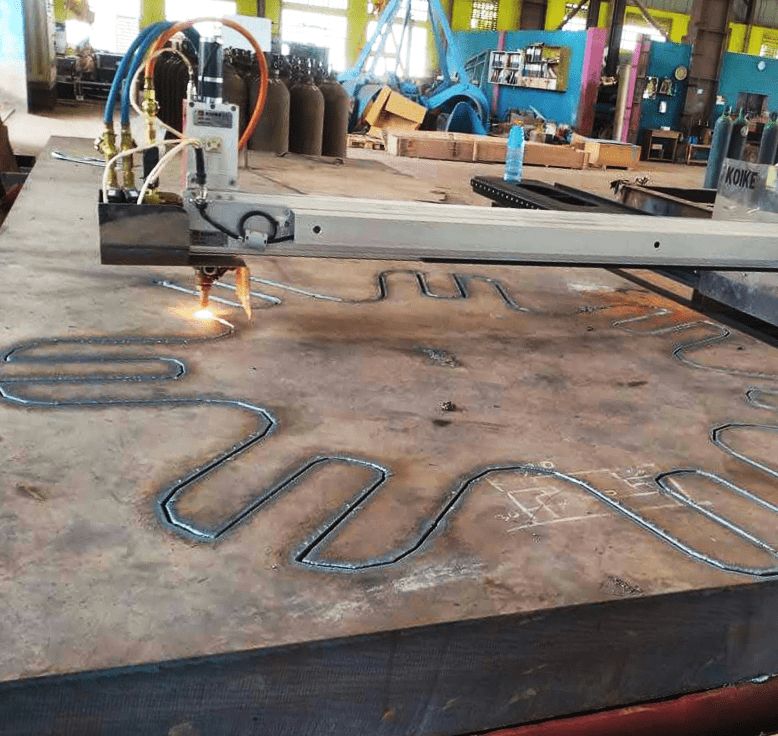

Working

Features

  • Strong and stiff machine construction
  • Choice of plasma units
  • 'Plug and Cut' Design - installed in almost no time
  • Almost maintenance free
  • Easy to use CNC controller with 15"
  • Direct DXF import
  • Automatic height control (depends on machine configuration)

Description

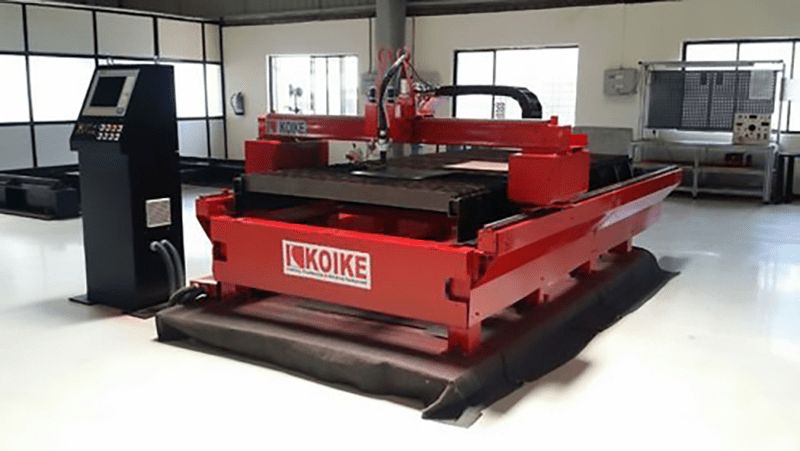

The Flexigraph 1530 cutting machine is a robust high-quality CNC controlled cutting machine, suitable for economical and good quality cutting of metals up to 20 mm (depending on machine configuration). The FLEXIGRAPH 1530 is a 'plug and cut' machine, rail and cutting table are one integral construction. This compact design enhances the stiffness of machine and floor space efficiency.Positioning accuracy is facilitated through the use of precision AC Servo Motors and Planetary Gears attached directly to the Rack and Pinion. This design is extremely reliable and offers a high positioning accuracy, with backlash free gears and traverse speeds of up to 18.000 mm/min. The combination of the latest CNC technology, Hypertherm's Power max plasma system, robust frame construction and ease of use do create an economical cutting machine for many applications.



Techanical Specification


Machine Type Air Plasma Ready Type
Main Body Dual-Side Drive
Effective Cutting Width 1,550mm
Effective Cutting Length 3,050mm
Drive Method Rack & Pinion Drive for X and Y Axes
Servo Drive Panasonic AC Servo Drive
Cutting Method Maximum 6M/min
Rapid Traverse Speed 12M/min
CNC System KOIKE D470
Cutting Capacity Depends on Plasma Cutting System
Plasma Torch Height Control AVC Type,Model HP-103
Plasma Torch Holder De-Coupler Type With Initial Height Sensing

Download Brouchre

Download

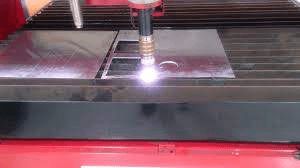

Working
