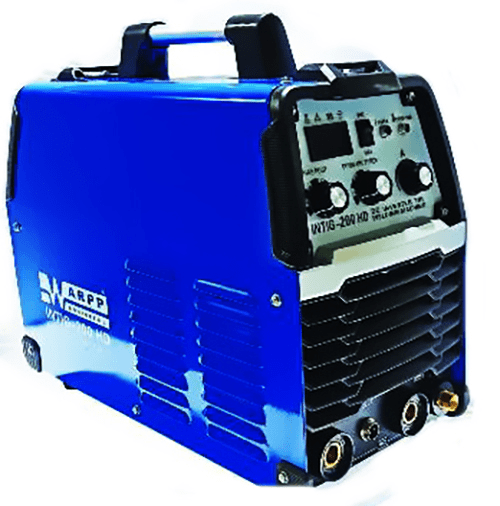

INTIG 200 HD is Single Phase IGBT Inverter Based MMA/TIG Welding machine which can be used for Manual Metal Arc (MMA) Welding and Gas Tungsten Arc Welding (GTAW) in various kind of metals.
Power Source:INTIG 200 HD
| Model | INTIG 200HD |
|---|---|
| Input Supply | 230+-15% 50/60 HZ (Single Phase) |
| Input Capacity(KVA) | 8 |
| Open Circuit Voltage | 75 Volts DC |
| Welding Current Range(A) | MMA 4-200 |
| TIG 4-200 | |
| Rated Duty Cycle | 60%(40deg C 10 Min Standard) |
| Dimension L*W*H(mm) | 460*210*390 |
| Efficiency(%) | 85 |
| Power Factor | 0.9 |
| Weight(Kg) | 12.6 kg |
| Post Flow Time | 1-7 Sec |
| Down Slope Time | 0-2 Sec |

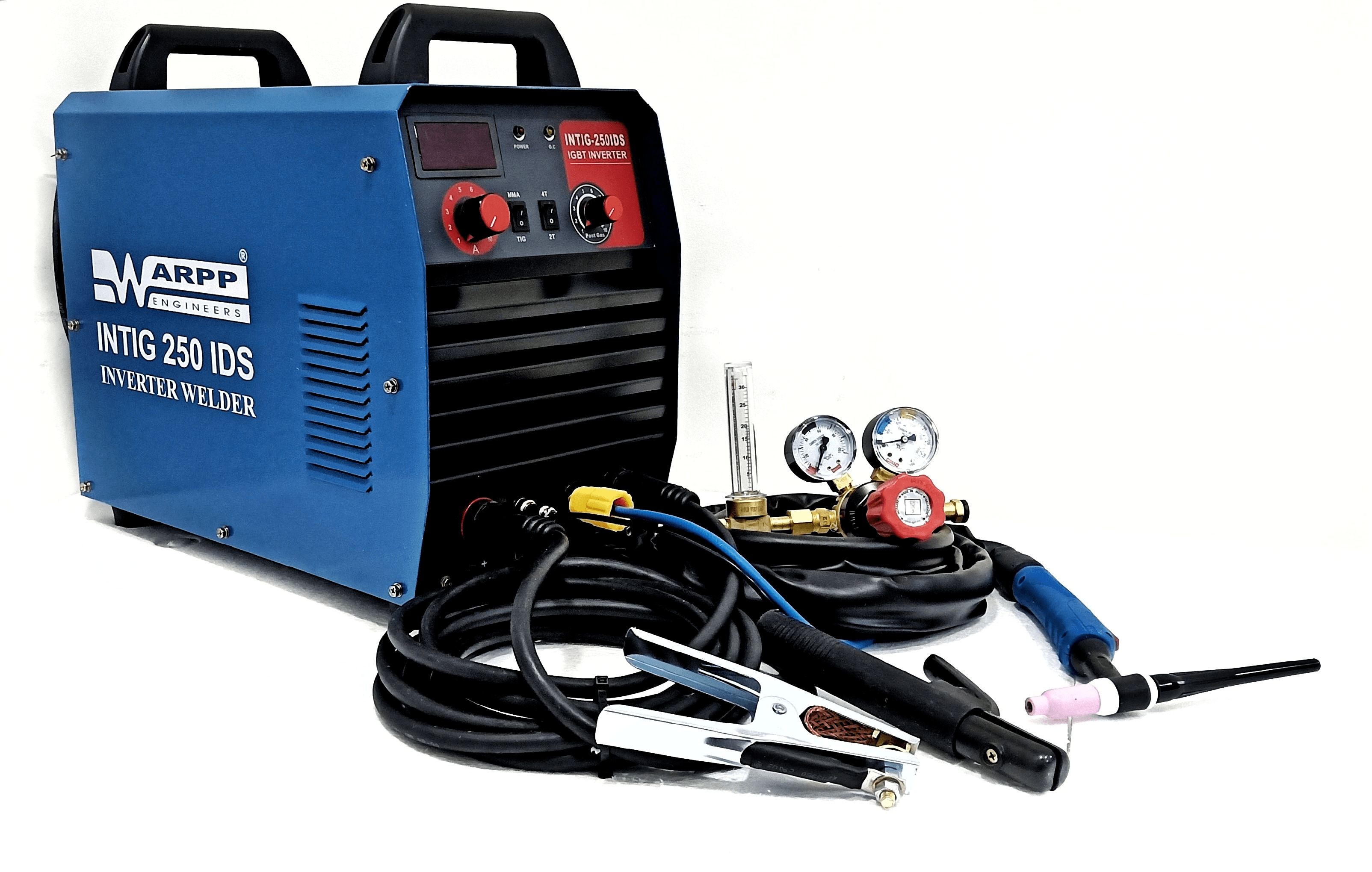

INTIG 250 IDS machine is IGBT inverter based arc welding power source with soft switching technology. They are widely used for manual metal arc welding with acid,basic electrodes and for TIG welding of various metals except Al & Mg Alloy.
Power Source, Remote Socket for torch trigger
| Model | INTIG 250IDS |
|---|---|
| Input Supply | 3 Phase 380~440 Volts |
| Input Power (KVA) | 12 KVA |
| Welding Current Range(A) | 20-250 |
| Open Circuit Voltage(V) | 75 |
| Duty Cycle | 250 Amps @ 60% (40deg C) |
| 194 Amps @ 100% (40deg C) | |
| Efficiency(%) | 89% |
| Power Factor | 0.9 |
| Weight(Kg) | 20 kg |

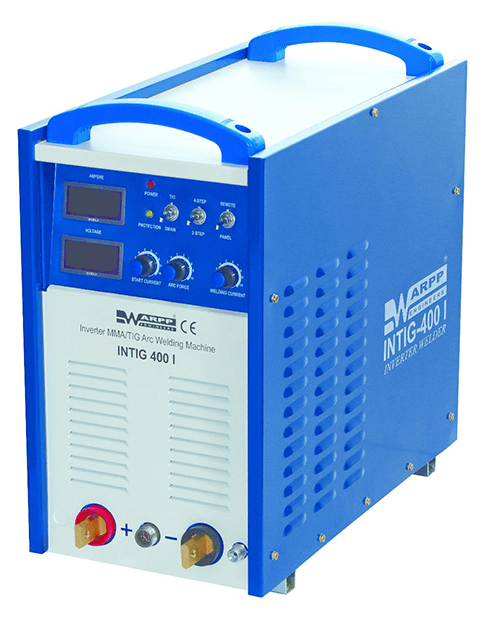

INTIG-i Series machine are IGBT inverter based arc welding power source with soft switching technology. They are widely used for manual metal arc welding with acid and basic electrodes and for TIG welding of various metals except Al & Mg.
Power Source, Remote Socket for torch trigger
| Model | Input Power (KVA) | Current Range (A) | Duty Cycle | Weight (Kg) | |
|---|---|---|---|---|---|
| INTIG-400 i | 18.4 | 20-400 | 60% | 43 | |
| INTIG-600 i | 35 | 25-630 | 100% | 65 | |
| Input Supply | 380-440V 3-Phase 50HZ Supply | ||||
| Open Circuit Voltage | 75 Volts | ||||
| Effiency at full load(%) | 89 | ||||
| Power Factor | 0.95 | ||||
| Ambient Temperature | 40deg C | ||||
