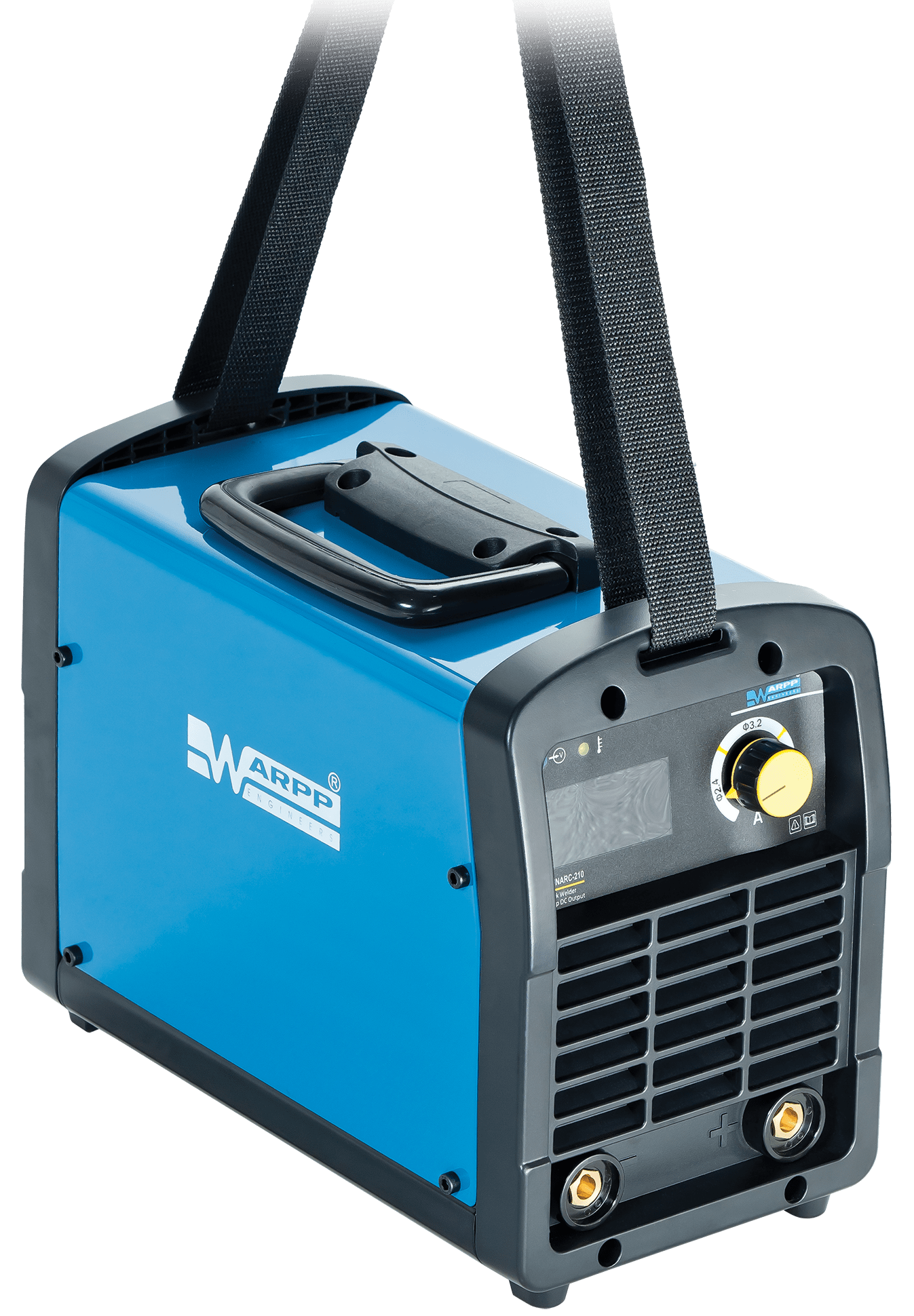

INARC 200 is Discrete IGBT Based Welding Power Source with Inverter Technology. These Machine can be used ARC Welding of Acid and basic type of electrode. The Machine is ultra compact and very light in weight and can be used to weld electrodes from 2-3.15mm.
Power Source
Accessories : Electrode Holder with 3mtrs,(25 sq.mm) with 2mtrs,(25 sq.mm) welding cable - 01 No.
| INARC 200 | |
|---|---|
| Input Supply | 240V+-15% 50/60 HZ (Single Phase) |
| Input Capacity(KVA) | 10 |
| Open Circuit Voltage | 75-85 V |
| Welding Current Range(A) | 20-210 A |
| Rated Duty Cycle | 60% |
| Dimensions | 340*185*270 mm (L*W*H) |
| Weight (KG) | 6.6 |

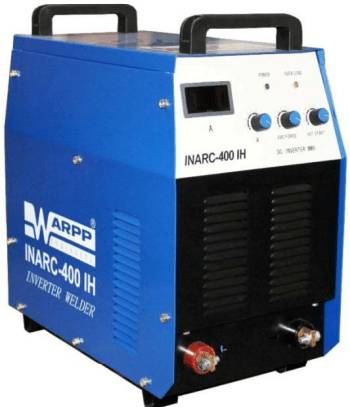

INARC 400IH Series are full bridge IGBT (Module) inverter based arc welding power source. They are widely used for manual metal arc welding with acid and basic electrodes.
Power Source only
| Model | Input Power (KVA) | Current Range (A) | Voltage Range (V) | Power Factor | Weight (Kg) |
|---|---|---|---|---|---|
| INARC-400 IH | 18.4 | 20-400 | 75 | 0.95 | 25 |
| Input Supply | 380-440 V 3-Phase 50HZ Supply | ||||
| Effiency at full load(%) | 89 | ||||
| Open Circuit voltage | 75-85 Volts | ||||
| Duty Cycle | 60% (40deg C & 10 Min Standard) | ||||
| Dimensions L*W*H(mm) | 495*285*460 | ||||

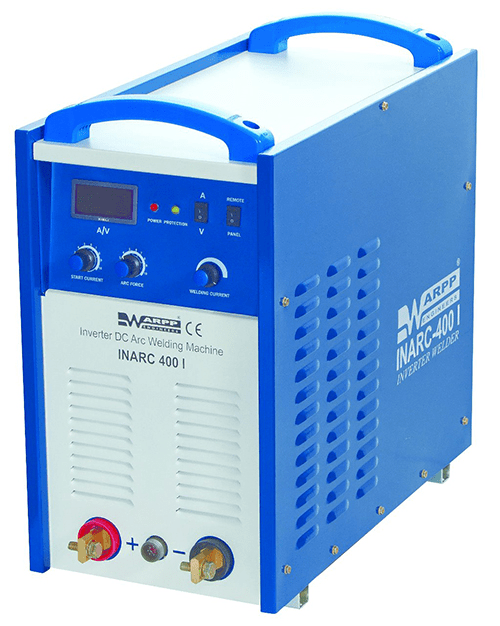

INARC-i Series machines are IGBT inverter based arc welding power source with sof switching technology. They are widely used for manual metal arc welding with acid and basic electrodes.
Power Source only
| Model | Input Power (KVA) | Current Range (A) | Duty Cycle | Weight (Kg) | |
|---|---|---|---|---|---|
| INARC-400 i | 18.4 | 20-400 | 60% | 36 | |
| INARC-630 i | 35 | 30-630 | 100% | 50 | |
| Input Supply | 380~440 V 3-Phase 50HZ Supply | ||||
| Open Circuit Voltage | 75-85 Volts | ||||
| Efficiency at full load(%) | 89 | ||||
| Power Factor | 0.95 | ||||
| Ambient Temperature | 40deg C | ||||
