Features

  • Easy to operate
  • Outstanding quality of cut surfaces
  • Allows cutting in any direction
  • High accuracy and efficiency
  • Simple and fast accessory replacement

Description

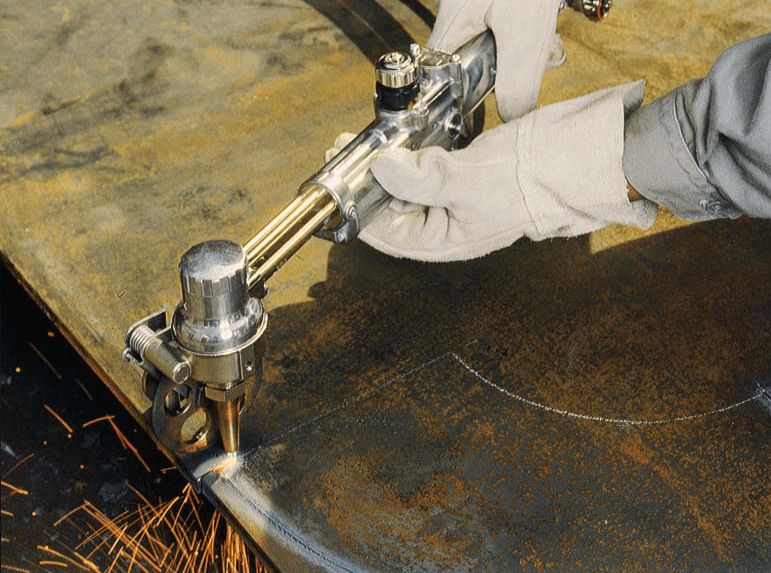

The Handy Auto is a portable hand held gas cutting machine with an integrated drive system, ignition device and Start-Stop-function for pre-heating flame. It ensures highest cut quality in vertical, circular and shape cutting as well as beveling.Besides cutting of flat surfaces it is also possible to perform curved contours on vertical surfaces like H-beams, pipes and bended plates.Thanks to the low weight of 2,7 kg only Handy Auto can be used as simple as an ordinary hand cutting torch.


Professional Kit

  • HANDY AUTO Standard Kit
  • Bevel wheel for bevel cutting(22-45°)
  • Small circle cutting attachment (30-120 mm Ø)
  • Guide handle
  • Steel carrying case


  • Techanical Specification

    HANDYAUTO
    Cutting Thickness 3-30 mm
    Cutting Speed 150-530 mm/min
    Type of Drive Transistor Control / Friction Drive
    Power Supply AC 100~240V
    Total Length 500 mm
    Type of Gas Acetylene,propane
    Weight 2.7 kg

    Download Brouchre

    Download

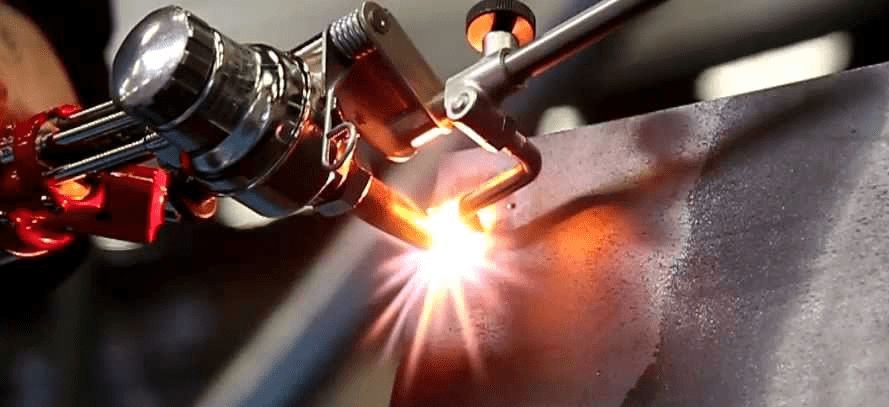

    Working

    Features

    • Outstanding performance
    • Unrivaled robust and heat-proof machine
    • Excellent traction
    • Steady travel due to a well balanced center of gravity
    • Very high number of operation hours (more than 5000 h) due to the double cone drive
    • Speed (80-800 mm / min.) High Speed (240-2400 mm / min.)
    • Heat protection shield on the cutting side and the base plate
    • Gas and plasma cutting as well as automated welding
    • Cutting area of 0,5 to 600 mm
    • Easy maintenance

    Description

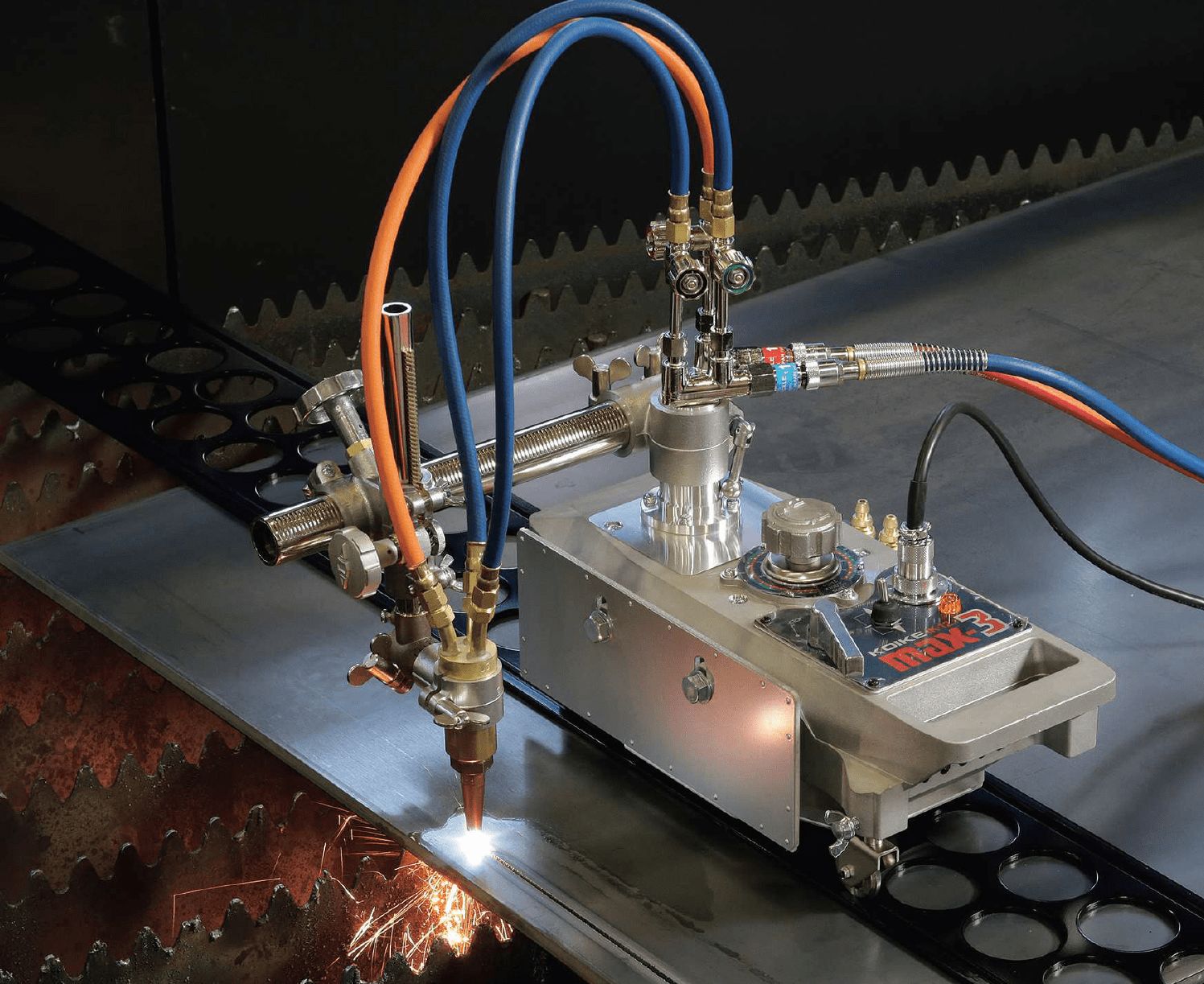

    The IK-12 Max 3 is the premium product of our assortment! This motorized hand cutting machine allows different types of oxy-fuel/plasma cutting and automated welding.There are three major parts to the system. The advanced motorized carriage, a cutting torch unit, the plate track and accesories. All serving as independent units, the customer can choose the system for his specific requirements.The Speed Control utilizes an exclusive KOIKE Double Cone Stepless Speed System, which functions with a condensor motor rotating at regliar speed to prevent heat and voltage problems. In addition, the condensor motor rotates at a constant low speed ( 1,500 rpm), extending the service life of bearings.



    Techanical Specification


    IK-12 MAX 3
    Cutting Thickness Depends on the torch set
    Cutting Speed standard 80-800 mm / min (50Hz), 100-1,000mm / min (60Hz)
    ML-Type 40-400 mm / min (50Hz), 50-500mm / min (60Hz)
    S-Type LOW Speed 80-800 mm / min (50Hz), 100-1,000mm / min (60Hz)
    HIGH Speed 240-2400 mm / min (50Hz), 300-3,000mm / min (60Hz)
    Transmission System Double Cone Speed System
    Motor Condenser type Induction Motor 9/10W(50/60Hz)
    Total Length 430 mm
    Track Width 160 mm
    Type of Gas Acetylene,propane
    Weight 11.0 kg (only main body)

    Download Brouchre

    Download

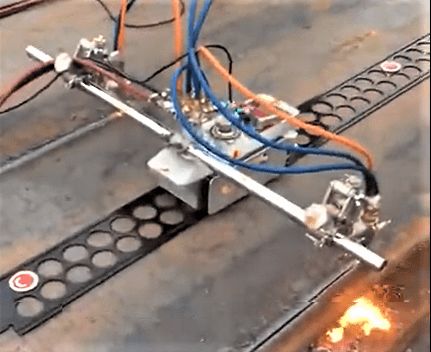

    Working

    Features

    • The travel functions (forwards, backwards, stop) are activated only by one operation element.
    • The drive system (continuous mechanical feed change) guarantees a constant and stable movement of the machine.
    • Low weight of 9.5 kg (Easy handling and transport)
    • Attaching two machine torches allows parallel- and Y-bevel cutting

    Description

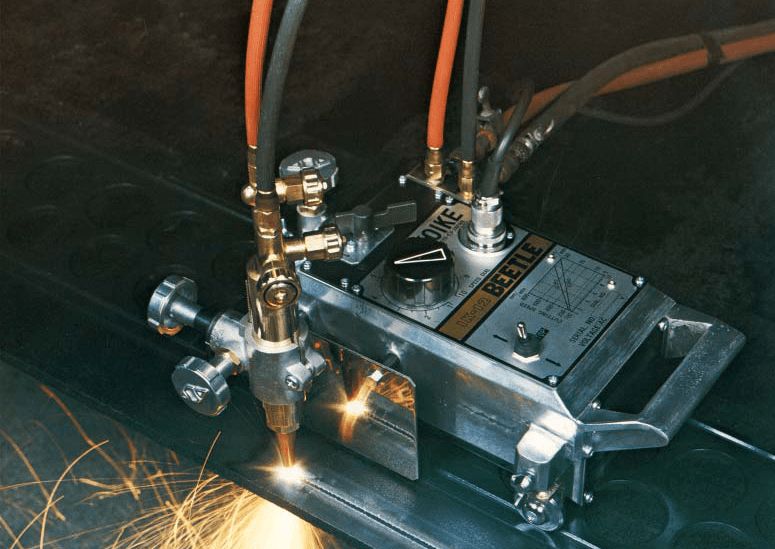

    The IK-12 Beetle is a high quality motorized hand cutting machine. The operator can perform all types of cutting with ease (circle and bevel cutting).The drive system (continuous mechanical feed change) guarantees a constant and stable movement of the machine. The travel functions (forwards, backwards, stop) are activated only by one operation element. The clutch control assures an trouble-free positioning of the machine. Bevel cutting is achieved by simply adjusting the torch holder at the bottom edge of the plate. A gear rack/ bevel drive ensures an precise positioning of the machine torch (Y- and Z-axis).


    Option

  • Two Torch set with this set parallel cutting with spacing of 80~300mm(3~12") is possibe.
  • Circle cutting attachment (Adjustible radius bar and weighted center-point) circle diameter range: 30~2,400mm(1.2~96")
  • Extension rail (1,800mm=70")


  • Techanical Specification


    IK-12 BEETLE
    Cutting Thickness 5-50 mm (by standard accessories)
    Cutting Speed 150-800 mm/min
    Transmission System Single Cone System
    Total Length 360 mm
    Track Width 160 mm
    Type of Gas Acetylene,propane
    Weight 9.5 kg (single torch set included)

    Download Brouchre

    Download

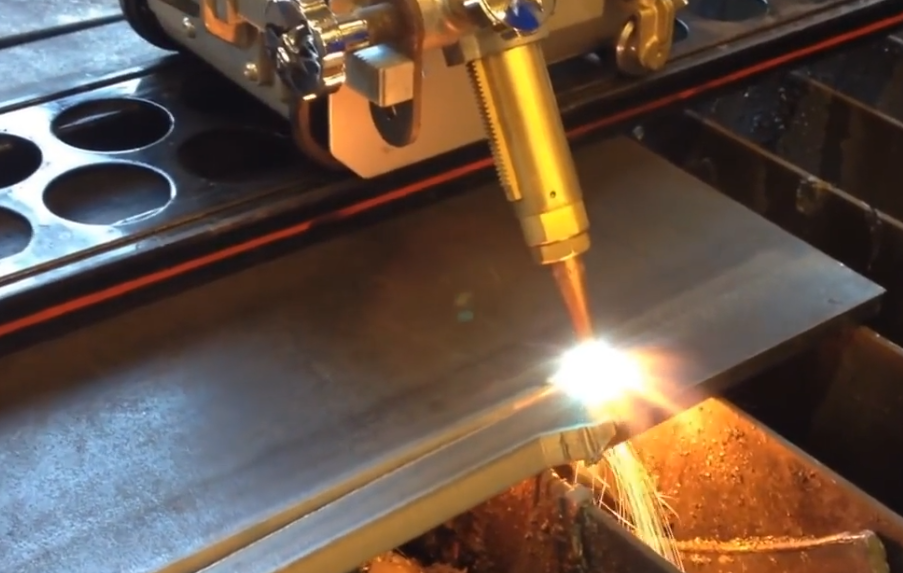

    Working
