Features

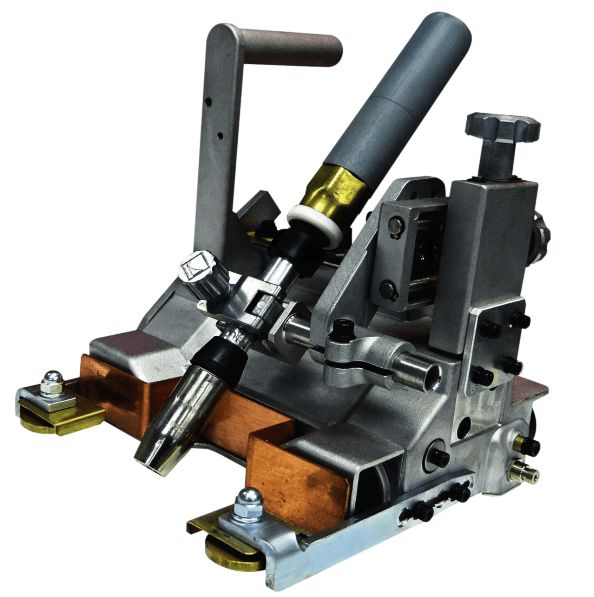

  • By turning down the lever on side of machine, built-in magnet is attracted to the steel plate, it demonstrates the high traction pulling the torch lead
  • The aluminum die-cast molded body provide its light-weight and sturdy.(Net Weight 7kg by Standard Specification)
  • Each 45mm of adjustment has been ensured in back and forth, up and down.Smooth operability, it can be fine adjusted the torch position even during welding.

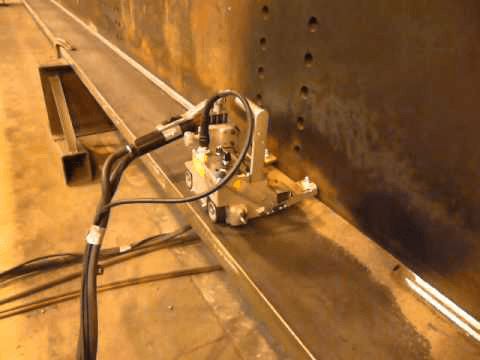

  • No need to install a rail.Guide Roller Arm will trace the surface of vertical plate.Besides standard type shown in the picture,other types of Guide Roller Arm are also available as option for various different applications.

Description

WEL-HANDY MULTI II series succeeds merits of conventional model such as light weight, strong traction force, and extensibility for various works. And WEL-HANDY MULTI II series are renewed for higher performance 7 kg body weight of high portability, magnet adsorption, and 4 wheels drive provide running stability (constant speed).



Techanical Specification

Machine Weight Standard Magnet Model: 6.9 kg
Strong Magnet Model: 7.5 kg
Machine Dimension(W×D×H) 277mm(W)×255mm(D)×264(H)
Traction Force 16kg
Gap(F.L. ~ Bace Board) 6mm
Magnet Up and Down Mechanism Magnet Lever
Driving Method 4-Wheel Driving Rubber Roller (Chain Transmission)
Magnet-type Permanant Magnet
Traverse Speed 50~1500 mm/min
Tracing Method Guide Roller (being pushed against Vertical plates)
Automatic Stop Function Limit Switch (equipped at both sides of Carriage at FL +20 mm height)
Fine Adjustment of Carriage Position Included
Non-Welded Portion Approximately 270 mm (in total at both Start and End point)
Power Cable Y-Branch Cable (Power and Signal cable Integrated)
● Carriage ~ Branch: 6 m,
● Branch ~ Power: 10 m,
● Branch ~ Wire Feeder: 0.5 m (with matching Panasonic-type Connector)
※ Please consult when using welding machine other than Panasonic.
Welding Torch Straight WHM (C)-350S & 500S
Curved 350A & 500A
Motor DC Motor with Encoder
Input Power AC 100~240V 50/60 HZ

Download Brouchre

Download


Working

Features

  • Multi Purpose Welding
  • Solid Aluminum Body
  • Light Weight at 9.8kgs
  • No Track Required
  • Fillet welds and corner joints can be done without the need for track. Butt and Lap joints are possible by using angle iron as a guide
  • Limit Switches on Carriage Ends
  • Limit Switches on Carriage Ends
  • Horizontal or Vertical Use
  • Weld in flat or vertical up position
  • Remote Controlled Weaving Option
  • Allows user to dial in weave settings on the fly while viewing live weld
  • Digital input
  • Weaving length & times/ minutes, stop time can be input digitally.
  • Driving speed indicator
  • Actual driving speed is indicated by digital input.

Description

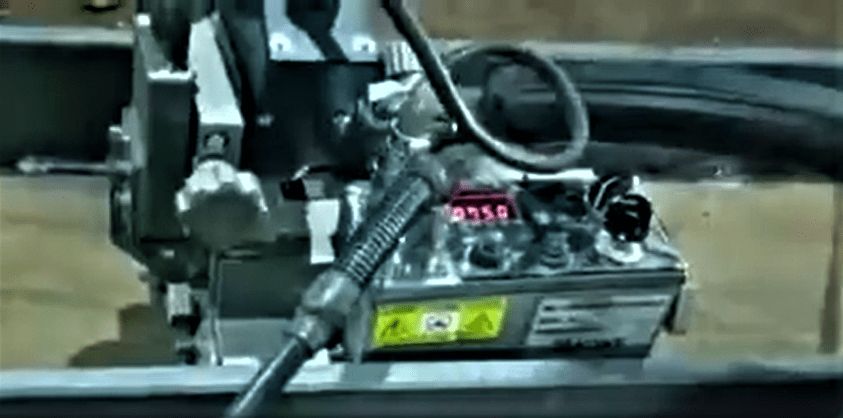

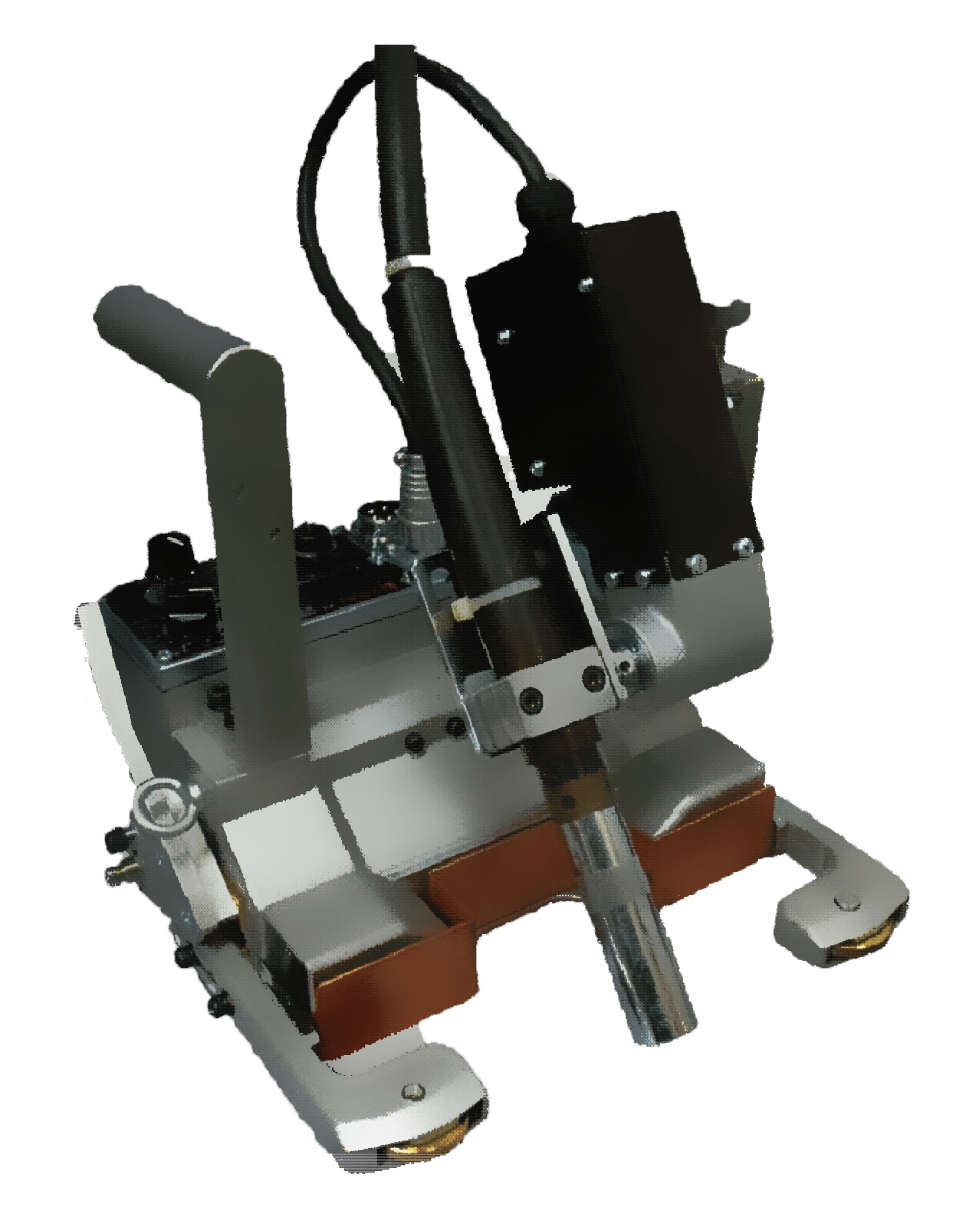

WEL-HANDY MULTI II WEAVING is equipped with weaving option to increase weldability and quality in multi-pass welding. The Weaving option is only available for the WEL-HANDY MULTI II WEAVING.



Techanical Specification


Machine Weight Standard Magnet Model: 9.8 kg
Machine Dimension(W×D×H) 310mm(W)×265mm(D)×264(H)
Traction Force 12kg
Gap(F.L. ~ Bace Board) 6mm
Magnet Up and Down Mechanism Magnet Lever
Driving Method 4-Wheel Driving Rubber Roller (Chain Transmission)
Magnet-type Permanant Magnet
Traverse Speed 50~1500 mm/min
Tracing Method Guide Roller (being pushed against Vertical plates)
Applied Posture Standard Magnet Model: Horizontal position Fillet Welding
Strong Magnet Model: Vertical position Fillet Welding
Automatic Stop Function Limit Switch (equipped at both sides of Carriage at FL +20 mm height)
Fine Adjustment of Carriage Position Included
Non-Welded Portion Approximately 350 mm (in total at both Start and End point)
Power Cable Y-Branch Cable (Power and Signal cable Integrated)
● Carriage ~ Branch: 6 m,
● Branch ~ Power: 10 m,
● Branch ~ Wire Feeder: 0.5 m (with matching Panasonic-type Connector)
※ Please consult when using welding machine other than Panasonic.
Welding Torch Straight WHM (C)-350S & 500S
Curved 350A & 500A
Torch Hold Diameter Straight Torch Holder:φ20 mm
Curved Torch Holder: φ16~20 mm Diameter
Motor DC Motor with Encoder
Input Power AC 100~240V 50/60 HZ

Download Brouchre

Download


Working

Features

  • Track welding in 3D contours
  • Available with and without weaving unit
  • Standard detachable remote control (W1)
  • Digital display (W2)
  • Robust rails in 1D, 2D and 3D directions
  • Vertical -up, downward, overhead and sideway welding with 1D rail

Description

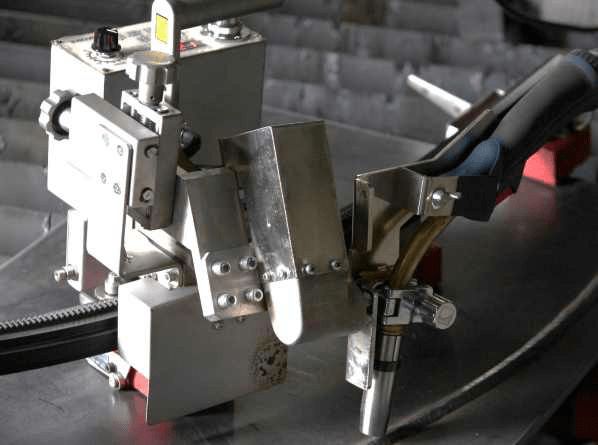

IK-72T demonstrates his unique ability to cut with the Koike 3D rail for years. Therefore Koike comes with the IK-72T W2 for welding. With this, in combination with the unique Koike 3D rail, Koike proves once again, the difference in the market. The combination of welding in 3D contours with standard suspension unit, continuously and digitally adjustable and robust body makes this system unique. It can also be used with the Koike 1D and 2D rail. Koike also supplies the IK-72T W1. This system comes with a detachable remote.



Techanical Specification


IK-72 W1 & W2
Welding speed 60-600 mm/min
Torch Position 45-55°
Weaving width W2 1-25mm
Weaving speed W2 30-120 rpm
Control W1 Detachable remote
Control W2 Digital display
Speed control Stepless adjustable
Welding direction Forwards / reverse
Interface Start / stop signal from welding machine
Weight 9.8 kg (W1), 4.1 kg (W2)
Rail KOIKE 1D, 2D and 3D

Download Brouchre

Download
